BYD Battery Storage Systems

Battery Storage Options For Home Or Business.

Battery stroage is now more relevant than ever, with ever increasing energy prices and consumers looking for ways to maximise their PV systems. The good news is systems are better and now priced at a range that consumers can now make a financial case to add Battery Storage to an exisiting sytem or include with a new system.



BYD Lithium Iron Batteries

BYD B-Boxes features a modular design allowing flexible battery storage sizing, extension throughout its lifetime, easy installation and uninterruptible maintenance.

Different versions for both 48V (LV) and high voltage (HV) storage systems.

Features a modular design allowing flexible battery storage sizing, extension throughout its lifetime, easy installation and uninterruptible maintenance.

Safe Battery Chemistry
B-Box uses a LiFePO4 chemistry battery which has been widely recognized as one of the safest battery technologies. This features a stable structure with a thermal runaway temperature of over 480℃. It is designed for residential and commercial applications with absolute safety.

High Power Output
B-Box is able to reach a peak 2C rate to support critical loads such as A/C and pumps, etc.

  • Suitable for Emergency-Backup and Off-Grid applications

Natural Cooling
B-Box is designed with natural cooling providing optimumefficiency.

10 Years Warranty

BYD Battery-Box Premium HVS / HVM

One Battery-Box Premium HVS is composed of 2 to 5 HVS  battery modules (2 to 4 with the SMA Sunny Boy Storage Inverter) together with a BCU and Base, that are connected in series to achieve a usable capacity of 5.1 to 12.8 kWh.
Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVS allows a maximum capacity of 38.4 kWh.
Ability to scale by adding HVS modules or parallel HVS stacks later.

  • Capable of High-Powered Emergency-Backup and Off-Grid Functionality
  • Highest Efficiency Thanks to a Real High-Voltage Series Connection
  • The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
  • Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
  • Two Distinct Modules to Cover the Complete Range of System Sizes
  • Highest Safety Standards like VDE 2510-50
  • IP55

BYD Battery-Box Premium HVS Sizes

BYD Battery-Box Premium HVS-HVM Key Points




BYD Battery-Box Premium HVS / HVM



BYD Battery Box Premium LVS

The BYD Battery-Box Premium LVS is a modular lithium iron phosphate (LFP) battery pack for use with an external inverter.

Between 1 and 6 battery modules can be used in a single stack to give 4.0 to 24.0 kWh usable capacity.

Alternatively, up to 16 Battery-Box LVS stacks consisting of between 1 and 4 battery modules can be connected in parallel to give a maximum capacity of 256 kWh. Additional LVS modules or parallel stacks can be added at any time to increase capacity.

1 PDU base and cover is required for each battery stack and 1 BMU per system/inverter

  • Scalable from 4 kWh to 256 kWh
  • Maximum flexibility for any application with up to 64 modules connected in parallel
  • Compatible with market leading 1 and 3 Phase Inverters
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, life cycle and power
  • Capable of High-Powered Emergency-Backup and Off-Grid Function
  • Patented Internal Plug Design Requires No Additional Wiring
  • Self-Consumption Optimization for Residential and Commercial Applications

BYD Battery-Box Premium LVS Sizes 02

BYD Battery-Box Premium LVS Key Points





BYD Battery-Box Premium LVS 16 Front

BYD Battery-Box Premium LVS 24 Left BYD Battery-Box Premium LVS Connection Area BYD Battery-Box Premium LVS PDU And Base



BYD Battery-Box Premium LVL

The BYD Battery-Box Premium LVL is a lithium iron phosphate (LFP) battery for use with an external inverter.
Thanks to its control and communication port (BMU), the Battery-Box Premium LVL scales to meet the project requirements, no matter how large they may be. Start with Battery-Box Premium LVL15.4 (15.36 kWh) and extend anytime to 983 kWh using parallel interconnection of up to 64 batteries.

  • Scalable from 15.4 to 983 kWh
  • Compatible with 1 and 3 Phase Inverters
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
  • Capable of High-Powered Back-up and Off-Grid Function
  • Space Saving via the Ability to Stack 2 Premium Batteries
  • Add Additional Batteries in Parallel at Anytime to Expand System

Each system consisting of 1 inverter with up to 64 batteries requires 1 BMU.

BYD Battery-Box Premium LVL Sizes

BYD Battery-Box Premium LVL Key Points

Temperature derating: Like many lithium batteries temperature effects how fast the battery can change and discharge. These latest BYD batteries have a very wide operating temperature range and will work at their peak performance ratings most of the time in most installations. Discharging isn't effected much by temperature, charging is effected mostly: below 5°C charge rate will reduce to 0.3C, below -2°C 0.05C.





BYD Battery-Box Premium LVL (2021) Front

BYD Battery-Box Premium LVL (2021) Angle Front Right BYD Battery-Box Premium LVL (2021) Angle Left

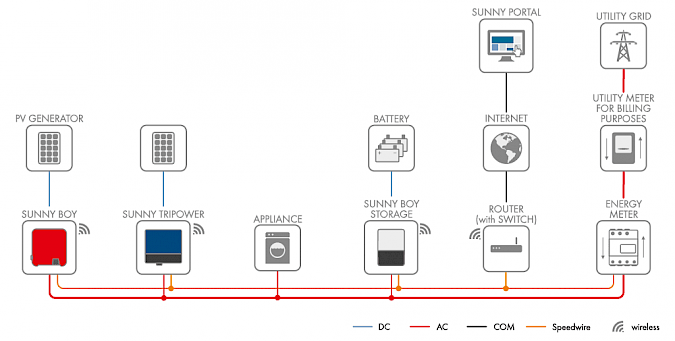

SMA Battery Config
